Industrial Drilling
TA

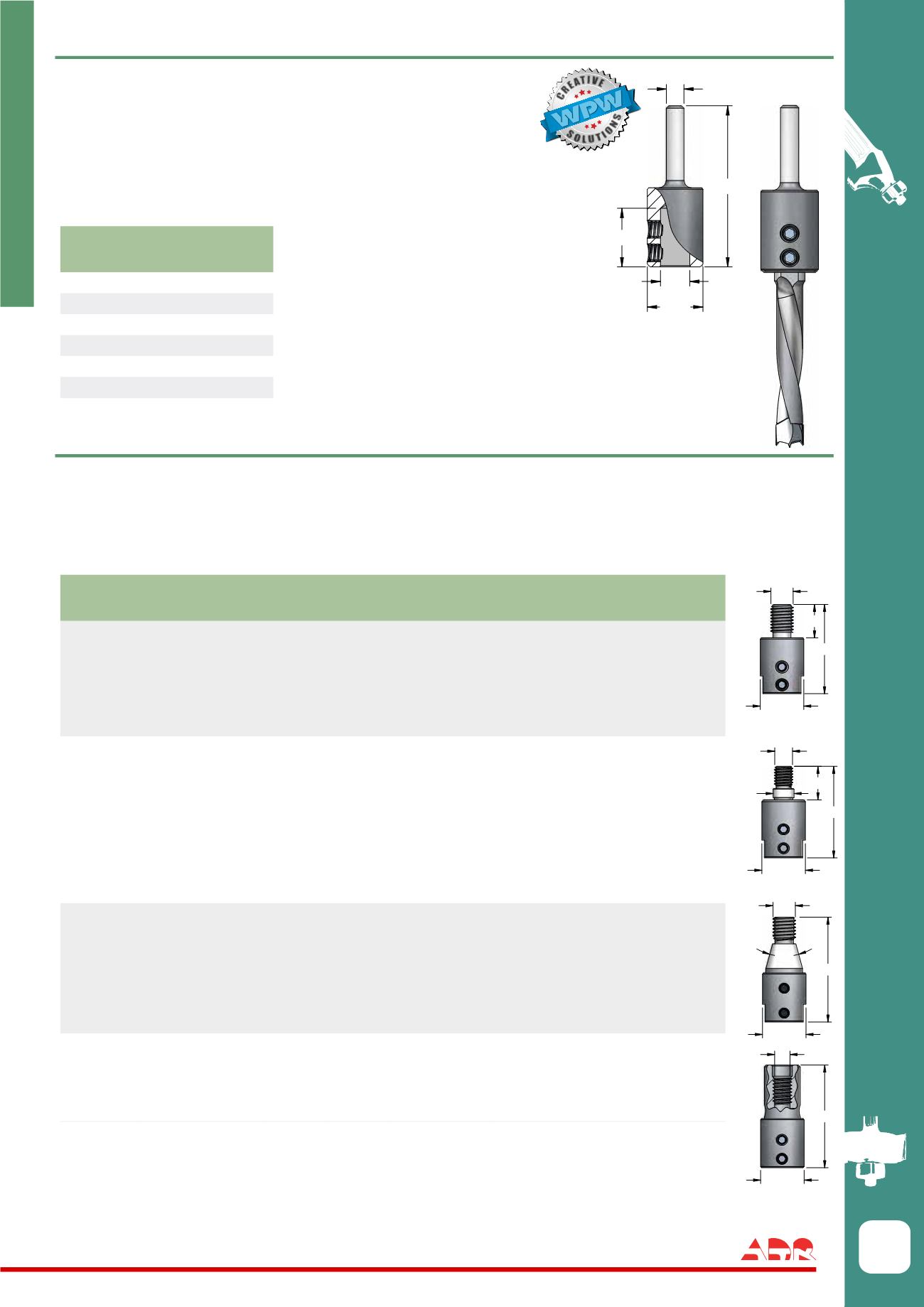

Adapters for “Combi” System drills
For CNC and Router machines
Allows using combi system drills, such as dowel drills, boring bits etc. in wide
range of applications.
TM
Boring Machine Chucks - Combi System
For 10mm Shank Boring Bits
Right hand and left hand rotation.
Tool No.
d
L
mm mm
TA10003
6
55
TA10004 6.35 (1/4")
55
TA10005
8
57
TA10007
10
55
TA10002
12
62
TA10008 12.7 (1/2")
62
2 Locking screws - BR60050 (M6 x 5), Allen key - KEY03.0 (3mm)
2 Locking screws - BR50050 (M5 x 5), Allen key - KEY02.5 (2.5mm)
Tool No.
d
D
α
B
L
For Machines
Right
Left
mm degrees mm mm
TM08101R TM08101L M8
-
-
15
40
NOTTMEYER
TM10103R TM10103L M10
-
-
15
40
AYEN, TORWEGGE, HOLZMA...
TM08104R TM08104L M8
9
-
16
41
NOTTMEYER
TM08114R TM08114L M8
9
-
16
52
NOTTMEYER
TM10105R TM10105L M10
11
-
16
41
HOLZMA, S.C.M.I., MORBIDELLI,
BIESSE, TORWEGGE...
TM08106R TM08106L M10
-
20°48'
12
51
BILEK
TM10102R TM10102L M10
-
30
12
47
BILEK, VITAP, BUSSELATO,
OMPEX...
TM10107R TM10107L M10
-
-
-
46
SCHEER
